Description
Alfie 200 is specially designed to remove contaminants from coolants in smaller systems, using the time-tested technique of centrifugal separation.

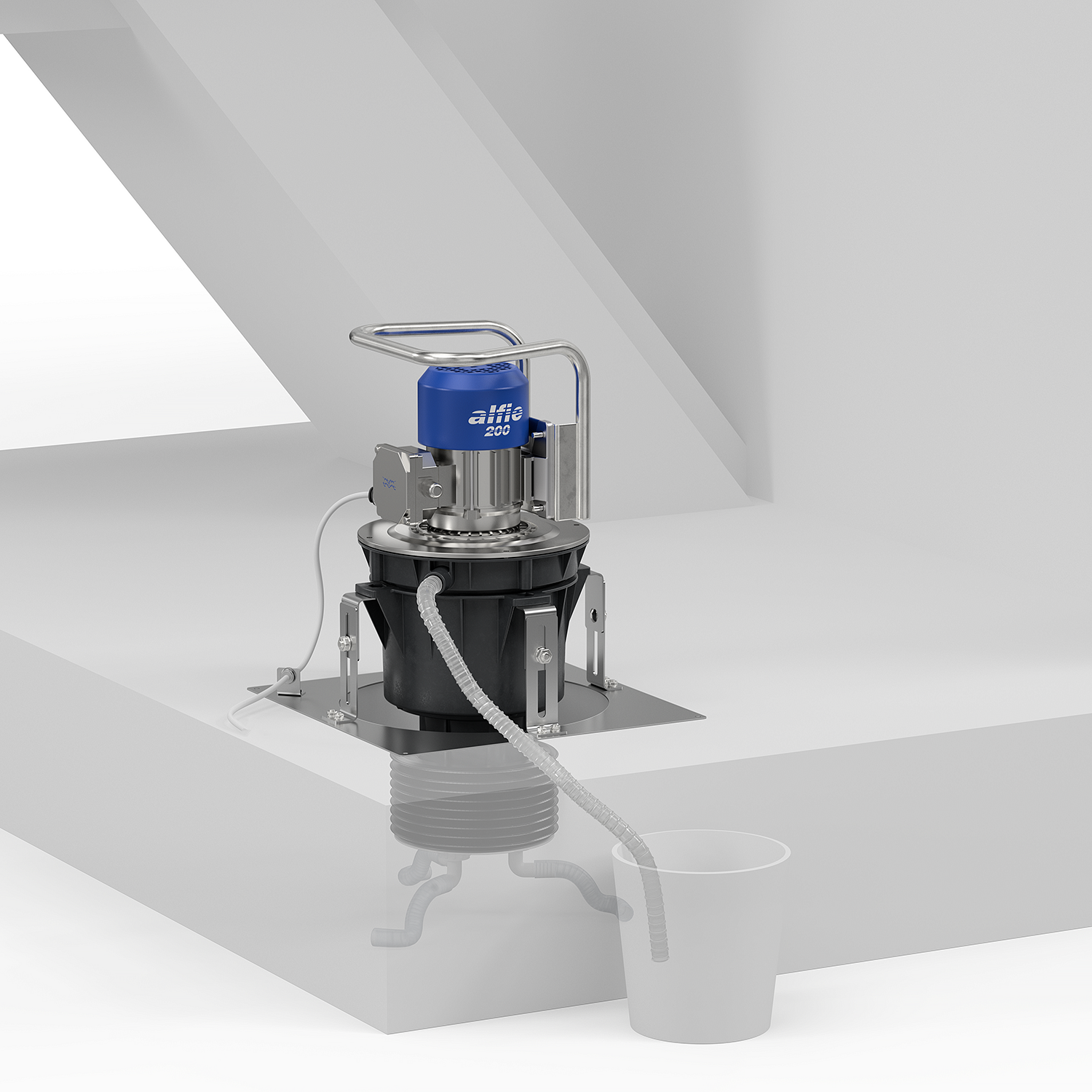

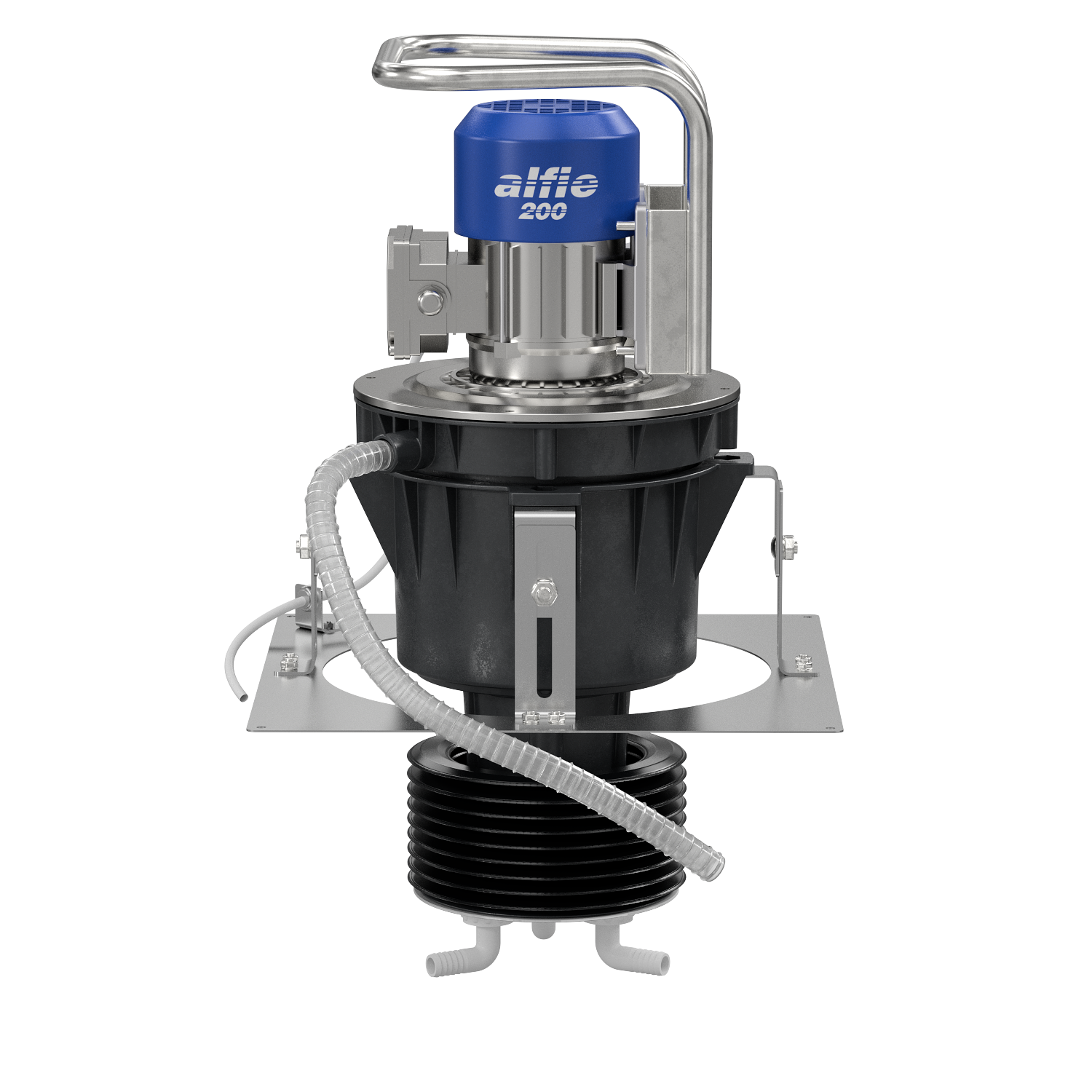

Alfie 200 is a small, compact unit, mounted on a frame and equipped with a plate that is screwed to the coolant tank. Under the separator is a bellows that automatically adapts the inlet to the level of fluid in the tank.
Alfie 200 is extremely easy to use. Anyone can learn all that is needed to operate and maintain Alfie in a few minutes.
Innovative
Thanks to new materials and new design solutions, Alfie 200 is truly compact. The total weight, including the stand, is only 14 kg.
Most essential components traditionally manufactured in stainless steel have been replaced by a recently developed tough, durable plastic.
Simple cleaning
It is fast and easy to clean the separator. The casing is lifted off by hand in a few easy movements and the sediment that has been collected on the periphery of the bowl is brushed off.
- Solid particles accumulate inside the rotating bowl. When the bowl needs to be cleaned, it can be opened with a few simple operations.
- The tramp oil leaves through the center of the bowl down into a separate collecting tank.
- The adjustable frame is mounted on top of the coolant tank.
- The bellows automatically adapt the inlet to the level of fluid in the tank.
- The purified coolant is returned to the tank through three hoses, which are positioned to create the circulation of the fluid.
